Specializes in outdoor camping and sports products. Our product range is extensive, covering various items to meet different outdoor needs.
Item number: D1
Box size: 14.6*8.3*5.1cm
Product size: 243-42-16mm
Weight: 144g
Carton size: 435*310*125mm
Gross weight: 3.6KGS/CTN 20PCS/CTN
Product Introduction
● 1.85 inches HD screen
● 900mAh big capacity battery
● HD video call
● Android smart system
● LBS+GPS+WIFI accurate positioning
● fashion apperarance
● Size: 243-42-16mm
● Weight: 63g

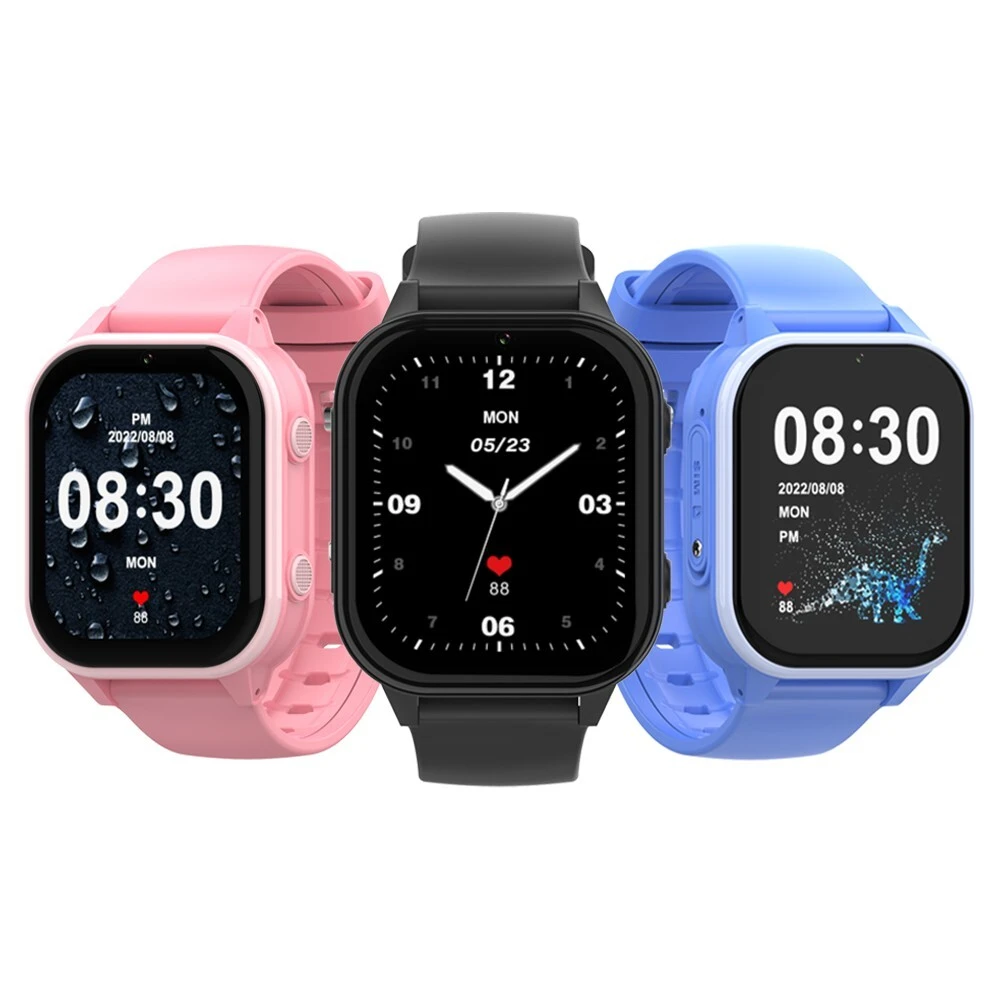

● Colors: Blue, Pink, Black
● Buttons: Two
● Speaker: 1609 waterproof
● Microphone: Waterproof
● Charging method: Magnetic charging cable<
● Motor: Support
● SIM style: NANO
● User Manual: x1
● Charging cable: x1
● Screwdriver: x1
● SIM card tool: x1
| Operating system | Android 8.1 | Features | ||
| Chipset | * Ssystem data type | 32 bit | * SMS | Receive SMS |
| * Main chip model | 8521/ | * Dial | Make and receive phone call | |
| * Main frequency | 1.4GHz | * Phone book | Save contacts | |
| * Framework | Quad-core ARM CortexTM A53 MP processor | * Voice chat | Send and receive voice | |
| * Video call | Make and receive video call | |||
| * Number of cores | Dual-core | * Setting | Various function settings | |
| Radio frequency | *GSM/WCDMA/FDD/TDD | GSM: B3 B8 | * AI voice | AI Voice Intelligent Q&A |
| WCDMA: B1 B8 | * Camera | HD camera | ||
| TDD: B38 B39 B40 B41 | * Education | Class Schedule | ||
| FDD: B1 B3 B5 B8 | * Gallery | Save photos | ||
| Frequency band | * Data rate | 2G:GPRS | * Switch | Shutdown the watch from setting |
| 3G:WCDMA | * Code | Registration and APP download code | ||
| 4G: CAT4 | * Alarm clock | Three | ||
| Phone call | * VOLTE | Support | * Stopwatch | Chronograph |
| * Video call | Support | * Call records | Show call history on watch | |
| * GSM phone call | Support | * Face recognition | Can realize local face unlocking | |
| Memory | * Memory type | NOR | * Watch face | Adjust |
| * Memory capacity | RAM+ROM 1+8GB | * Scene mode | Adjust | |
| LBS | * LBS | Support | * Music | Adjust |
| * Positioning Accuracy | 100-1000M | * Pedometer | Able to turn on and turn off | |
| GPS | Chip model | Integrated in the main chip | * WIFI surfing | Able to connect with WiFi |
| GPS signal | L1,1575.42MHz C/A code | * Make friends | 4 friends | |
| Nnumber of channels | 22 | * Weather | Shows the weather | |
| Chip receiving sensitivity | Tracking: -165dBm, Capture: -148dBm | |||
| Positioning Accuracy | 5-15M | |||
| GPS antenna | LDS | |||
| AGPS | Support | |||
| Fast positioning time: | 45 seconds cold start | |||
| WiFi | * WiFi | Support | ||
| * Chip model | Built-in | |||
| * Standard | 802.11b\802.11g\802.11n | |||
| * Hot point | Not support | |||
| * Data transmission | Not support | |||
| Screen | * Fitting method | OGS | ||
| * Screen size | 1.85 inches 240*280 | |||
| * Screen style | LCD | |||
| * Manufacturing process | IPS | |||
| * Size | 1.85 inches | |||
| * Chip IC\Interface Type | IC:ST 7789V | |||
| * Resolution | 240*280 | |||
| * Angle of view | Full | |||
| Touch Screen | * Touch type | Capacitive | ||
| * Manufacturing process | COB | |||
| * Panel shape | 2D | |||
| * Panel thickness | 1.1mm | |||
| * Anti-fingerprint oil | Yes | |||
| * Touch points | Single Point | |||
| Camera | * Front camera pixels | 30W | ||
| * Lens type | CMOS | |||
| * Proactive IC | GC030A | |||
| Battery | * Cell specification | 603032 | ||
| * Capaicty | 900mAh | |||
| * Voltage | 4.35V | |||
| * Stand-by current | 6mA | |||
| * Standby time | 100H | |||
| * Recharging current | 300mAH | |||
| * Charging time | 2.5H | |||
products display
Product Components
| Ssystem data type | 32 bit |
| Main chip model | 8521/ |
| Main frequency | 1.4GHz |
| Framework | Quad-core ARM CortexTM A53 MP processor |
| Number of cores | Dual-core |
|
GSM |
B3 B8 |
|
WCDMA |
B1 B8 |
|
TDD |
B38 B39 B40 B41 |
|
FDD |
B1 B3 B5 B8 |
|
Data rate |
2G:GPRS |
|
3G:WCDMA |
|
|
4G: CAT4 |
|
VOLTE |
Support |
|
Video call |
Support |
|
GSM phone call |
Support |
|
Memory type |
NOR |
|
Memory capacity |
RAM+ROM 1+8GB |
|
LBS |
Support |
|
Positioning Accuracy |
100-1000M |
|
Chip model |
Integrated in the main chip |
|
GPS signal |
L1,1575.42MHz C/A code |
|
Nnumber of channels |
22 |
|
Chip receiving sensitivity |
Tracking: -165dBm, Capture: -148dBm |
|
Positioning Accuracy |
5-15M |
|
GPS antenna |
LDS |
|
AGPS |
Support |
|
Fast positioning time |
45 seconds cold start |
|
WiFi |
Support |
|
Chip model |
built-in |
|
Standard |
802.11b\802.11g\802.11n |
|
Hot point |
Not support |
|
Data transmission |
Not support |
|
Fitting method |
OGS |
|
Screen size |
1.85 inches 240*280 |
|
Screen style |
LCD |
|
Manufacturing process |
IPS |
|
Size |
1.85 inches |
|
Chip IC\Interface Type |
IC:ST 7789V |
|
Resolution |
240*280 |
|
Angle of view |
Full |
|
Touch type |
Capacitive |
|
Manufacturing process |
COB |
|
Panel shape |
2D |
|
Panel thickness |
1.1mm |
|
Anti-fingerprint oil |
Yes |
|
Touch points |
Single Point |
|
Front camera pixels |
30W |
|
Lens type |
CMOS |
|
Proactive IC |
GC030A |
|
Cell specification |
603032 |
|
Capaicty |
900mAh |
|
Voltage |
4.35V |
|
Stand-by current |
6mA |
|
Standby time |
100H |
|
Recharging current |
300mAH |
|
Charging time |
2.5H |
